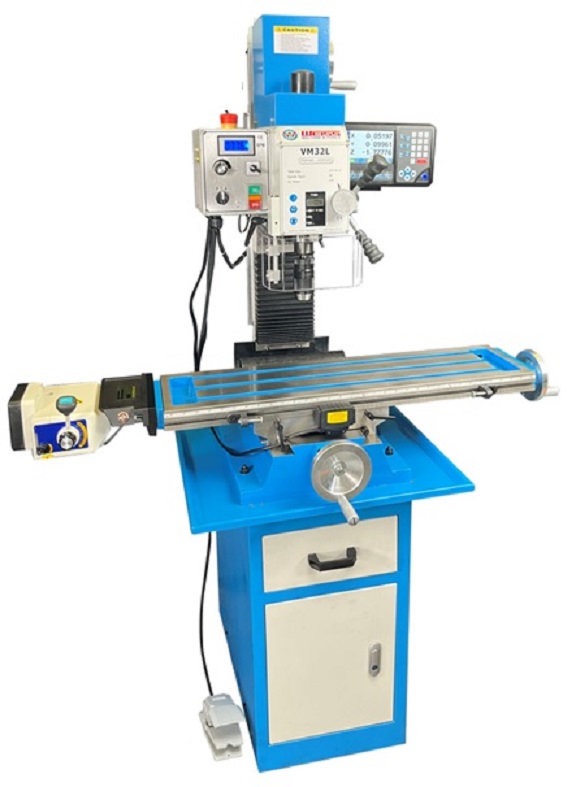

MILL DRILL: VM32L WITH DRO, BRUSHLESS MOTOR & POWER FEED
Variable speed enables to operate easily.
Spindle is supported by high precision taper roller bearing
.Single speed belt drive provide more quiet and easy operation.Mill head can be tilled ±90° .
Precision manual fine down feed.
Easy reading scale has satin chrome finish.Bigger table provides more capacity.
Dovetail column,base & worktable with adjustable taper gibs.
Complete with delux stand
SKU: 110-2127
MILL DRILL: VM32L WITH DRO, BRUSHLESS MOTOR & POWER FEED
Price per Unit(piece):
$4,600.00 (Exc GST)
$5,060.00 (Inc GST)
- FEATURES
- SPECIFICATIONS
FEATURES
Variable speed enables to operate easily.
Spindle is supported by high precision taper roller bearing
.Single speed belt drive provide more quiet and easy operation.Mill head can be tilled ±90° .
Precision manual fine down feed.
Easy reading scale has satin chrome finish.Bigger table provides more capacity.
Dovetail column,base & worktable with adjustable taper gibs.
Complete with delux stand
SPECIFICATIONS
| Model No.: | VM-32L DRO |
| Digital Readout: | Yes |
| Packaging Width (m): | 0.74 |
| Packaging Length (m): | 105 |
| Gross Weight (kg): | 300 |
| Voltage (V): | 240 |
| Max Nose to Column (mm): | 190 |
| Max Face Milling Capacity (mm): | 76 |
| Motor Power (kW): | 1.1kw |
| Net Weight: | 265 |
| Powerfeed: | True |
| Max Nose to Table (mm): | 470 |
| Max Drilling Capacity (mm): | 32mm |
| Speed Range (rpm): | 60-2200 |
| Speeds (no.): | Variable |
| Spindle Taper: | MT3 |
| T-slot (mm): | 14mm |
| Quill Travel (mm): | 100 |
| Table Size (mm): | 840x210 |
| Cross Travel (mm): | 200 |
| Longitudinal Travel (mm): | 580 |
| Max End Milling Capacity (mm): | 25mm |
| Packaging Height (m): | 1.5 |
